DOWN DRAFT PAINT SPRAY BOOTH

DOWN DRAFT PAINT SPRAY BOOTH

A down draft paint spray booth is a specific type of paint booth designed to enhance air circulation and minimize contamination during the painting process. Here's a description:

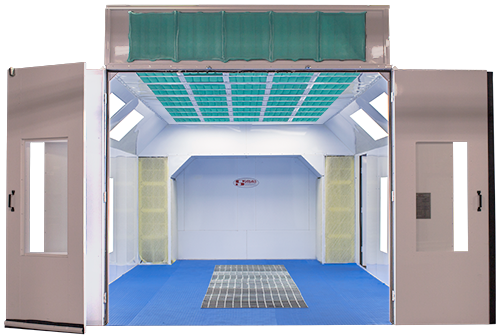

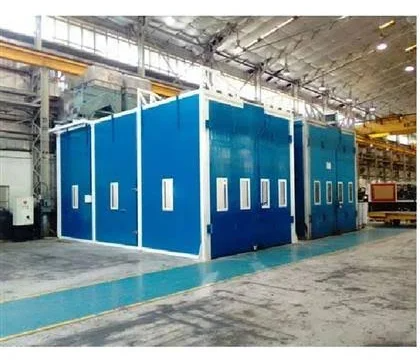

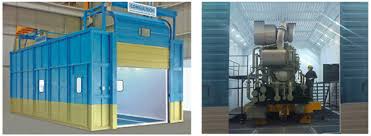

A down draft paint spray booth is an enclosed workspace used primarily in industrial settings for applying paint coatings to various objects or surfaces. The distinguishing feature of a down draft booth is its ventilation system, which draws air from the top of the booth down through a filtration system located in the floor or pit below. This airflow pattern, known as a "down draft," helps to efficiently capture overspray and airborne contaminants, directing them away from the painter and the painted object.

Key components of a down draft paint spray booth include:

1. **Enclosure**: The booth is typically constructed with walls, a ceiling, and a floor that houses the filtration system.

2. **Ventilation System**: Air is drawn into the booth through intake filters located at the top or sides. After paint application, the air is pulled downwards through the object being painted and exits through filters in the floor or pit.

3. **Filtration System**: Filters located in the floor or pit capture overspray and contaminants, ensuring that clean air is exhausted from the booth.

4. **Lighting and Controls**: The booth is equipped with appropriate lighting for visibility and may include controls for regulating airflow, temperature, and other environmental factors.



Down draft paint spray booths are preferred in industries where high-quality finishes are critical, such as automotive manufacturing, aerospace, and furniture production. They help to achieve uniform paint application, reduce overspray, and maintain a safe working environment by efficiently managing air quality within the booth.
