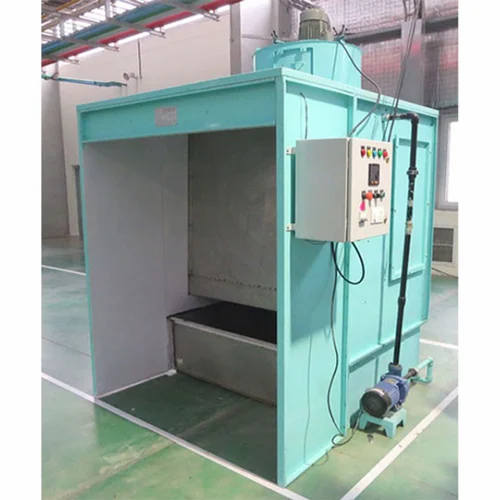

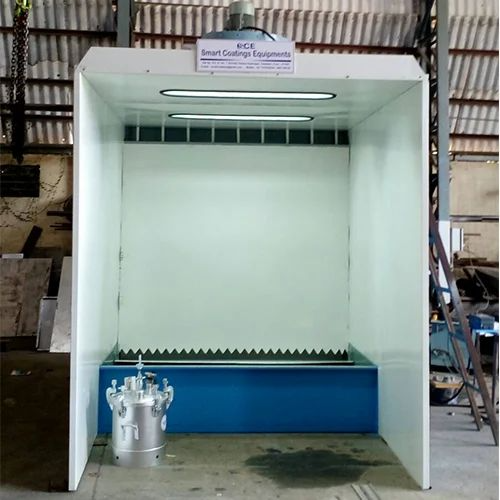

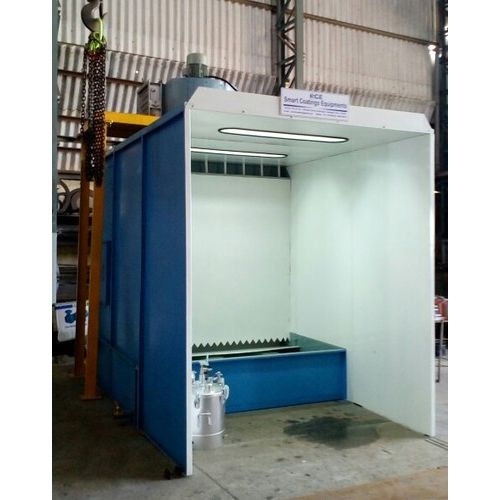

ASU / WATER WASH PAINT SPRAY BOOTH

ASU / WATER WASH PAINT SPRAY BOOTH

An water wash paint spray booth is a type of industrial paint booth that incorporates water as a method to capture paint overspray and contaminants from the air. Here's a description:
An ASU or water wash paint spray booth typically includes the following features:
1. Water Wash System: Instead of using dry filters to capture paint overspray, an ASU booth uses a water wash system. This system consists of a series of water curtains or walls through which the air containing paint overspray is passed. The water traps the paint particles and contaminants, effectively cleaning the air before it is exhausted from the booth.

2. Air Supply Unit (ASU): The ASU refers to the equipment that supplies clean, filtered air into the booth. This air is necessary to maintain positive pressure inside the booth, preventing contaminants from entering and ensuring a clean painting environment.

3. Ventilation and Exhaust: ASU booths have exhaust fans or blowers that draw air through the water wash system and then expel it outside or through additional filtration to remove any remaining paint particles and fumes.

4. Environmental Compliance: Water wash paint spray booths are often preferred in environments where strict environmental regulations govern the release of volatile organic compounds (VOCs) and other emissions from paint operations. The water wash system helps to capture and contain these pollutants effectively.

5. Maintenance: Regular maintenance of the water wash system is crucial to ensure its effectiveness. This includes monitoring water levels, changing filters, and periodically cleaning out accumulated paint solids.

ASU or water wash paint spray booths are commonly used in industries such as automotive manufacturing, aerospace, and large-scale industrial painting applications. They offer efficient paint overspray capture, compliance with environmental standards, and can handle high-volume painting operations effectively.
