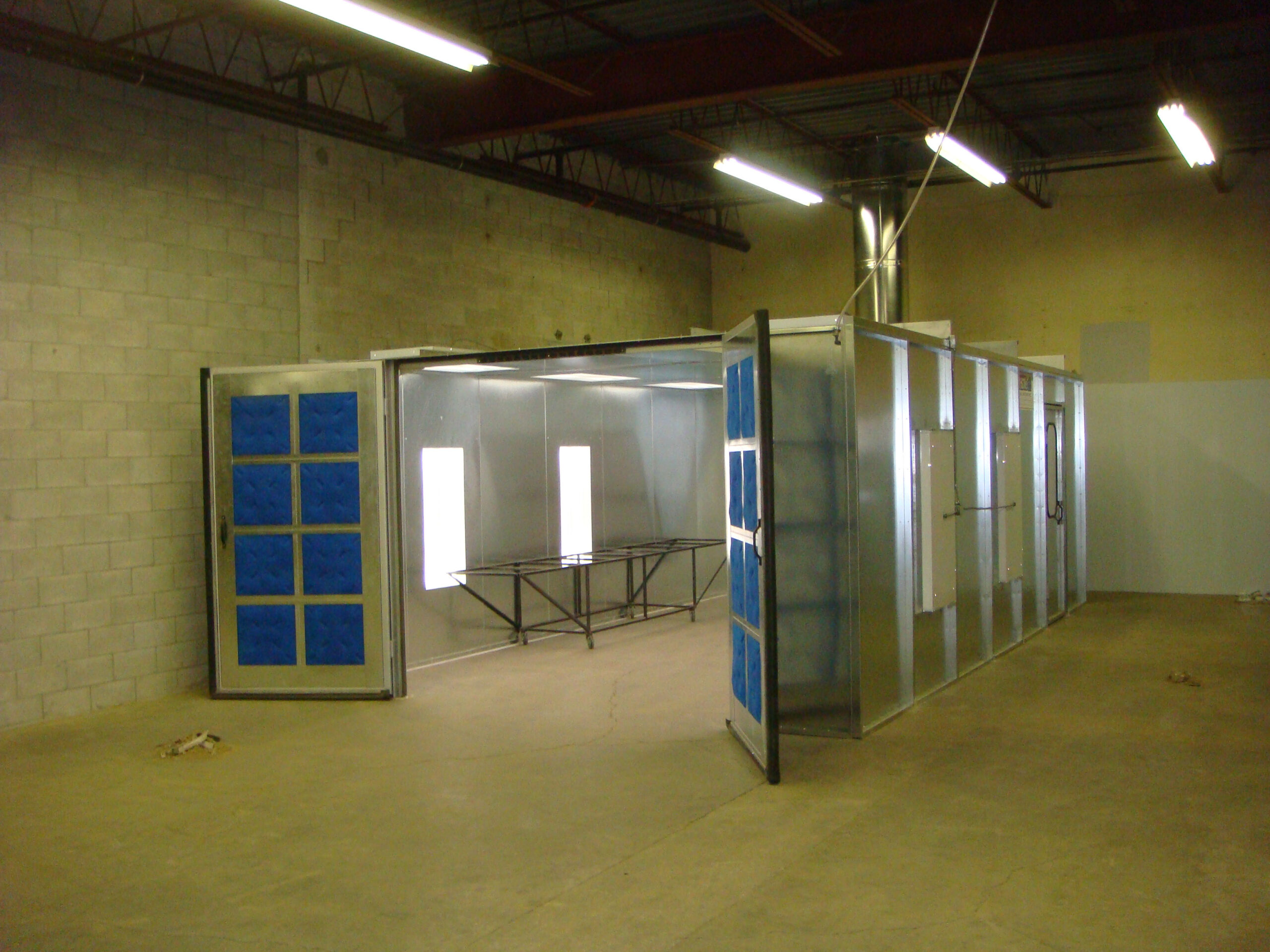

CROSS DRAFT PAINT SPRAY BOOTH

CROSS DRAFT PAINT SPRAY BOOTH

A cross draft paint spray booth is a type of paint booth that uses a specific airflow pattern to control the movement of air and paint overspray within the enclosure. Here's a description:

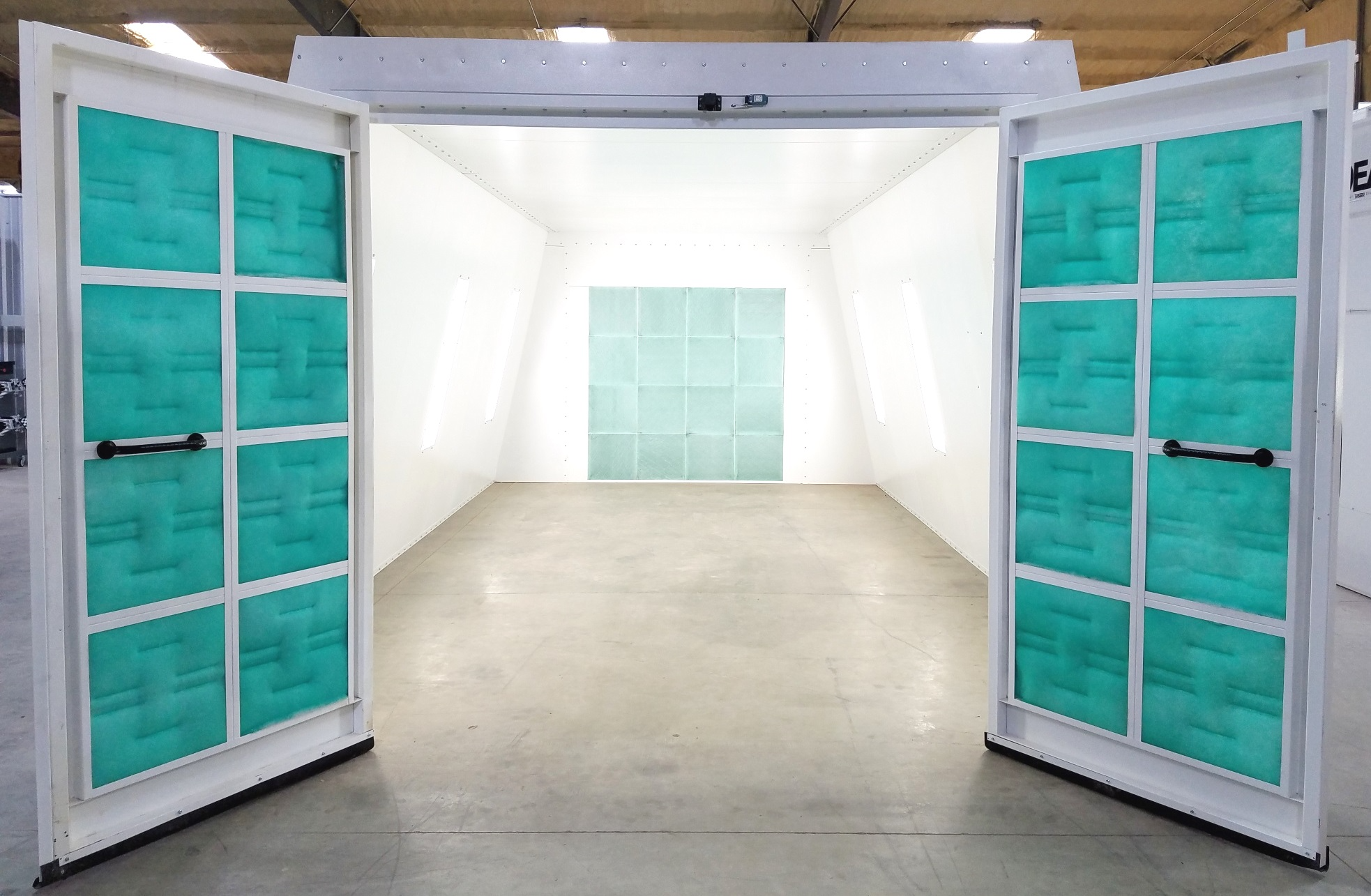

A cross draft paint spray booth is designed with an airflow pattern that moves horizontally across the work area. The booth typically has intake filters on one side of the booth where fresh, clean air is drawn into the booth. This incoming air is then filtered to remove contaminants and particulates.

Once inside the booth, the filtered air flows horizontally across the work area, creating a steady stream of air that helps to carry paint overspray away from the object being painted. This airflow pattern helps to ensure even distribution of paint and reduces the likelihood of dust and debris settling on freshly painted surfaces.

At the opposite end of the booth, exhaust fans or filters remove the air and overspray from the booth, venting it outside or through a filtration system to remove paint particles before recirculating the air back into the booth.

Cross draft paint spray booths are commonly used in various industries where painting of large objects or surfaces is required, such as automotive repair shops, furniture manufacturers, and industrial equipment facilities. They offer effective containment of paint overspray, efficient ventilation, and a controlled environment for achieving high-quality paint finishes.
